Overview

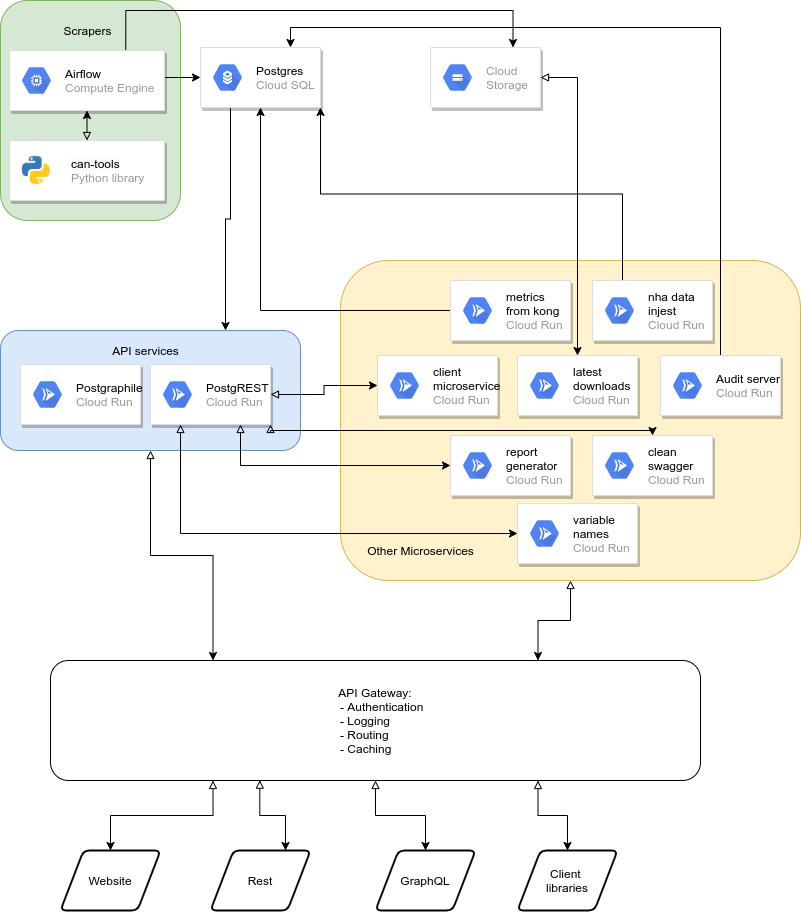

The overall microservice architecture we use is shown in the diagram below:

CAN scraping architecture

In, words, these components are

  1. Scrapers: these are open source scrapers written in Python. The repository is here https://github.com/covid-projections/can-scrapers

  2. Database: we store all data in a postgrestql database

  3. API: We have REST and GraphQL APIs. They are automatically generated using the PostgREST and postgraphile libraries

  4. Client Libraries: We have client libraries in Python, R, and Julia that integrate with the REST API

  5. API Gateway: we have a Kong API gateway that sits in front of all user requests and handles things like caching, routing, and authentication

  6. Other services: we have a handful of other microservices that perform specific functions. These are contained in docker containers that communicate over HTTP and are managed by Google Cloud run

We have a few comments about each of the 6 component groups below

Scrapers

We have written about 70 scrapers to gather data from various sources. The sources are primarily state and county level dashboards, typically operated by the local government itself or the local health department. Other scrapers pull in data from sources like the New York Times, HHS, Our World in Data (for international data), and CovidTrackingProject.

Running Scrapers: Apache Airflow

Inside the can-scrapers repository there is a services/airflow diretory that contains infrastructure code for running all scrapers using Apache Airflow.

Most of the Airflow DAGs are automatically generated. This happens by importing can_tools and checking for all subclases of a particular base class. For each of these subclasses we generate a dag that calls get to fetch the data and put to store it in the database. The get methods are all specialized for each scraper. The put method can also be specialized, but often the one from the base class is sufficient.

Each DAG runs once every two hours. We assign a random execution time to each DAG so that they don’t all try to run at the exact same time. This helps us better utilize compute resources.

Database

When airflow runs a scraper from can_tools, all data ends up in a postgresql database. The database has three main schemas:

  1. data: this stores the raw data in a mostly normalized way.

  2. meta: This schema stores metadata such as lookup tables for variable id ↔ variable name and state/county metadata

  3. api: this is the schema that determines the user facing API. It mostly contains SQL views that join together tables from data and meta schemas to control the user experience

The client libraries/APIs (see below) only access the api schema

We run the database using Google Cloud SQL.

API

We provide REST and GraphQL APIs to our users

REST API

The REST API is automatically generated using PostgREST. PostgREST authenticates to the database via read-only credentials and automatically generates endpoints for each table or view in the api schema.

PostgREST also auto-generates documentation as a swagger/OpenAPI json file. We use this on our website to populate the doc page, in the client libraries to auto-generate classes for each endpoint, and to create a postman collection as part of their featured list of covid APIs (https://postman-toolboxes.github.io/covid-19/#featured-collections)

GraphQL API

We also have a complete GraphQL API. This is also automatically generated, but by the [postgraphile](https://www.graphile.org/postgraphile/) library.

The endpoint is https://api.covidcountydata.org/graphql and an interactive GraphiQL playground can be found at https://api.covidcountydata.org/graphiql

Client Libraries

Using the swagger.json file produced by PostgREST we have auto-generated client libraries in Python, R, and Julia

They all provide the same set of core features, including

  • Declarative query building: users specify what data they would like to end up with and we do the work of making all requests, merging/aligning datasets, converting to long form, and returning a dataframe with all data

  • API key handling: there is a register method in each client library that handles requesting and storing API keys. If a user calls register and gives their email address, the API key will be looked up or generated and returned to the user. The API key is then stored in the user’s home directory and will be used for all subsequent API interactions, even in future programming sessions. Users also have the option to manually pass an API key (perhaps looked up from an environment variable) when creating a client

  • Documentation/introspection: the library also hooks into each language’s native system for documentation and introspection. For example, in Python each API endpoint is an method on the Client class. These methods can be searched interactively using tab completion. Also if you are in IPython or Jupyter you can use ? to get the auto-generated documentation directly from the swagger.json file

API Gateway

We route all requests to https://api.covidcountydata.org/XXXX through a single API gateway

This gateway is creating using the open source Kong API gateway library and handles a variety of tasks for us:

Other Services

We have a few other microservices that support our APIs

These are all contained in docker containers and run an HTTP server for processing requests

Each of these is deployed and auto-scaled using Google Cloud Run

The microservices are:

  • Audit server: we prototyped a feature on our website to allow crowd-sourced auditing of or data. Users would visit the audit page of the site, we would select a specific scraper for them to audit. Once selected, we would show the scrapers current data as well as open an iframe containing the scraper’s url so users can verify that each datapoint we were extracting from the source was correct. Users could then fill out a form on the website. The form’s contents were sent to this audit server and logged in our database. It didn’t gain traction or make it out of PoC

  • clean_swagger: the swagger file generated by PostgREST is a little messy. We have simple python service that obtains the raw PostgREST swagger.json and cleans it up before returning to places like the client library, website, or postman collection.

  • client-microservice: we are about to launch a dataset customizer feature to our web page. This is basically a GUI version of the client libraries. On the website users can select which datasets they’d like and what filters (e.g. geography, time windows) they want to apply. Once the request is built up by web users, the site sends a request to this microservice, which is a very thin wrapper around our Python client. The Python client will request the data, prepare the return and send back to the frontend for a clean/custom download

  • latest_downloads: we have a download csv feature on the website. This is similar to CANs API and is a thin layer that sits on top of a cloud storage bucket. We had user feedback that we wanted to customize the filename of the downloaded files to include the date the data was downloaded. This latest_downloads microservice gets a request for a particular dataset to download, fetches the most recent version of that from cloud storage bucket, and then returns it to the user with the current date added to the file name. Probably overkill to have a whole microservice for this, but it weighed in at less than 40 lines of code, so it was a pretty easy solution to implement and maintain.

  • metrics-from-kong: this microservice implements our custom logging middleware. All requests to the API are relayed from Kong to this micro service where we can process the request and store the output in our database

  • nha_data_injest: this is a microservice that handles scraping data from the Nevada Health association pdfs CAN has been receiving. It wraps one of the scrapers in can_tools and exposes it as a triggerable cloud function so it can process files on demand, as they come in

  • postgraphile: This is the microservice that runs the postgraphile library providing our GraphQL API

  • postgrest: This is the microservice that runs the PostgREST library and provides our REST api

  • report_generator: This microservice is responsible for reporting when new variables first entered our database. The output is rendered at the bottom of https://covidcountydata.org/data to provide a “changelog” for when new data came into the system.

  • variable_names: this microservice provides support for the custom data downloader feature we are about to release. For each endpoint it returns a list of unique variable names contained within the dataset. This allows the front-end to allow filtering in/out variables within a dataset. It is a microservice so we can simplify front-end coding and so that this variable list can be cached by Kong and we can avoid unnecessary trips to the database for this info.
